Description

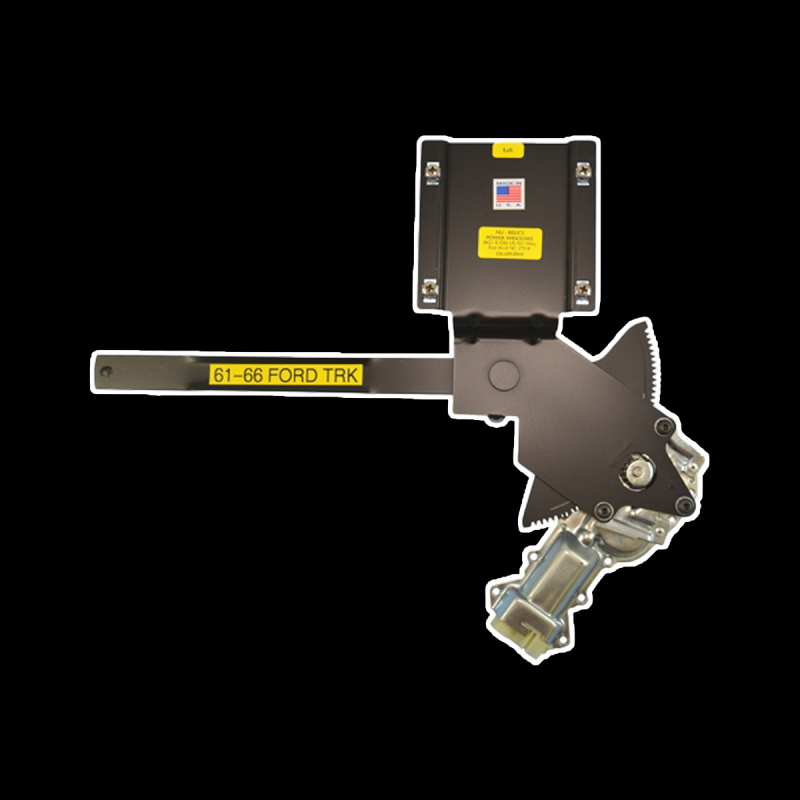

A Nu Relics power window kit for 1961–1966 Ford trucks. The regulators are built for this cab, so they bolt into the original mounting holes and run in the stock window channels. You get electric windows without changing how the doors look or work.
Features
- Model specific — bolts into the original mounting holes.
- Uses the stock window channels for smooth, quiet operation.
- New ACI motors: 3 amps no load, 5 low load, 11 high load, 20 at stall.
- Regulators made on 1018 cold roll steel.
- Bronze Oilite thrust bearings at the pivots, made in the USA, to keep them lubricated.
- 4130 heat-treated gear plates for longer tooth life and better wear.
- Lifetime warranty, with a copy of your sales receipt or invoice.
Choose your option
- Switches: no switches, Nu Crank, standard chrome, black illuminated or nostalgic.
- Switch placement: door, console, or not needed.
- Add a switch kit and the conduit is included at no extra charge. Order without switches and you get motor plugs and terminals instead.
Fitment notes
The ACI motors are reverse polarity motors and require reverse polarity switches. If you are supplying your own switches, confirm that before you wire anything up.
Truck compatibility and specs
Fits these trucks
1961–1966
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order.
Specifications
- Part number
- NURELIC-FORD-6166
- Brand
- Nu Relics
- Weight
- 7.1 kg
Installation
Wiring: the ground for this system has to come from the master switch. The motor has two poles — power to one side and ground to the other, not to the motor case — and swapping the wires side to side reverses the direction. Most of our harnesses come with an in-line 30 amp fuse, and a circuit breaker works too. Power can come straight off the battery, from a spare slot in your fuse panel, or from the key-on side of the switch. A relay is not normally needed, but old-style 3-pole switches need a special relay to reverse polarity at the motor; call us at 336-699-8949 and we can supply those prewired.
Grease and oil: use a high-temp automotive wheel bearing and chassis lubricant on the regulator gear teeth and roller tracks, NLGI grade 2 for example, and stay away from older soap-based lithium grease, which sets up hard in cold weather. A few drops of lightweight oil at the pivot points keeps the Bronze Oilite bushings running smoothly. 3M silicone spray helps break in fuzzy runs and weather stripping, and dielectric grease or Tuner Lube on the terminals keeps moisture and corrosion out.
Reviews
Power Window Kit - 1961-1966 Ford Truck
Common questions
Do the doors have to be modified?
No. The regulators are model specific, so they bolt into the original mounting holes and run in the stock window channels. The door looks and works the same from outside.
What is in the kit?
Two front door regulators, left and right, plus two new ACI motors. Switches are a separate choice at the top of the page - order a switch kit and the conduit is included at no extra charge; order without switches and you get motor plugs and terminals instead.
Is there a warranty?
A lifetime warranty applies with a copy of your sales receipt or invoice, so keep the paperwork.
How do I know it fits my truck?
This part is listed for 1961–1966 Ford F100, F150, F250, F350 and Bronco. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
What if it is not right for the truck?
You have 30 days from delivery to return it by mail. Return shipping is on you, and the part needs to come back uninstalled and unmodified - once a part has been trimmed or welded it cannot go back. Made-to-order items are final sale. The full terms are on our returns page.
Can I install this myself?
It is designed for a home install with ordinary hand tools, and the fitment notes on this page list anything that needs drilling, trimming or welding. Where an installation guide or video exists for the part it is linked in the Installation tab.
Still not sure? Contact us before you order.
