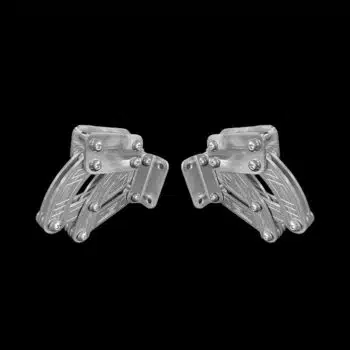

Tilt Bed Scissor Hinges (Pair) for All Trucks

(23 customer reviews)

$499.99

Share this product!

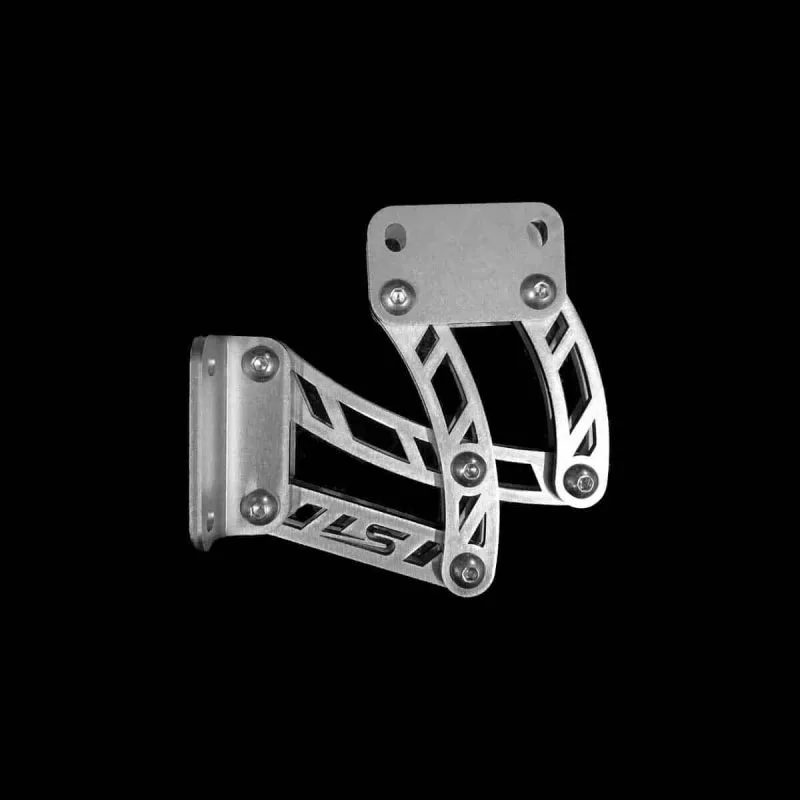

This scissor hinge option can be used for hoods, tilting bed floors, or any type of opening door compartment, taking your custom truck to the next level! Our Tilt Bed Scissor Hinges are laser cut from 3/16” 304 stainless steel or CNC machined to 3/16" 6061 billet aluminum and double armed for unmatched sturdiness. Hinges are assembled with 3/8” stainless steel bolts, nylon washers, and low-profile jam nuts. We've eliminated as much play as possible from our hinges by tightening 3/8” hole tolerances, ensuring unparalleled precision. These hinges are sold as a pair and have a mounting face of 3.5” x 1” on both mounting locations.

Please note that the raw tilt bed scissor hinges will require disassembly if you want to paint them. Furthermore, assembly will take some time and planning and there are many parts included. To aid in reassembly, take plenty of good photos prior to disassembling.

Tilt Bed Scissor Hinge Features:

  • ★ Laser cut from 3/16” raw steel or 3/16" stainless steel
  • ★ Hinges are double armed to be much sturdier than any of the competitions.
  • ★ Assembled with 3/8” stainless steel bolts, nylon washers and low profile jam nuts.
  • ★ 3/8” hole tolerances have been tightened to eliminate as much play as possible.
  • ★ Mounting face is 3.5” x 1” on both mounting locations.
  • Sold as a pair

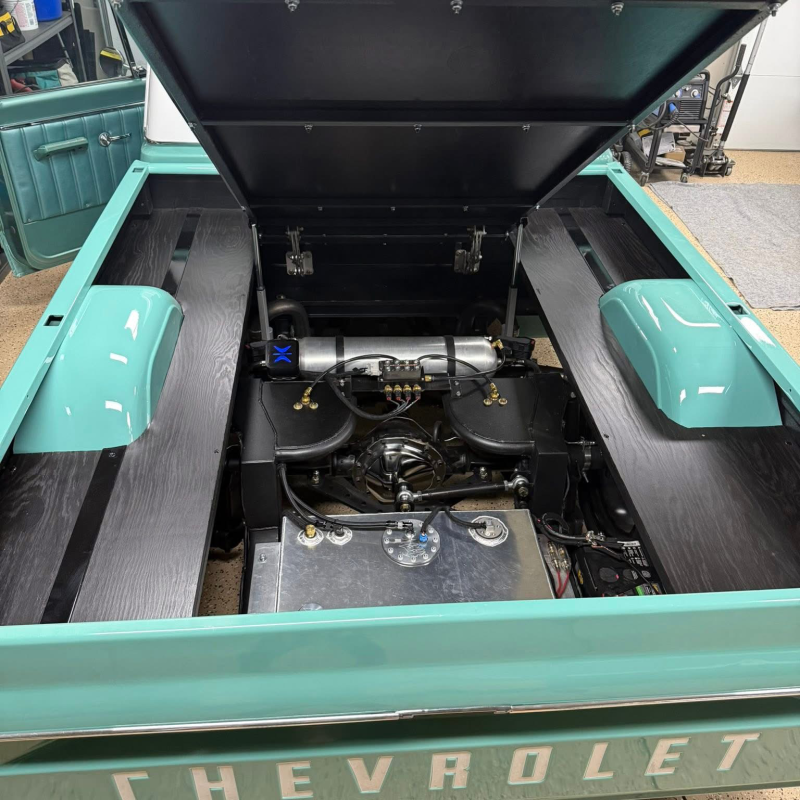

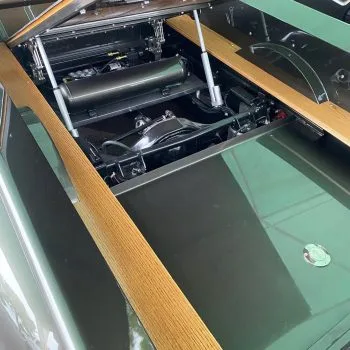

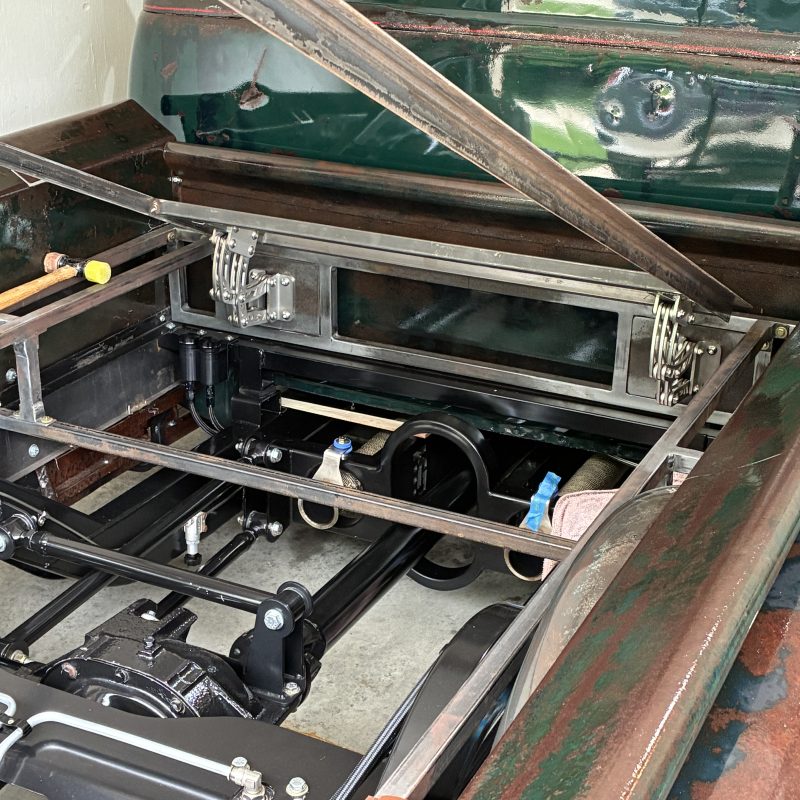

Tilt Bed Scissor Hinge Installation:

Are you interested in purchasing our Tilt Bed Scissor Hinges? Use the resources below to get an idea of what installation looks like. If you need assistance determining the length, lbs, or placement of your gas struts, take a look at the "calculate your gas spring application" button.

If you are doing work on your classic truck bed, you need our awesome products that go perfectly with our scissor hinges:

Additional information

Weight 2.1 kg
Dimensions 23 × 16 × 16 cm
Truck Year

, , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Truck Make

, , ,

Truck Model

, , , , , , , , , , , , , , , , , , , , , , , , , , , , ,

Product Types

, ,

Material

,

Brand

Interior / Exterior

Type

Stainless Steel (Bolt On), Billet Aluminum (Bolt On)

23 reviews for Tilt Bed Scissor Hinges (Pair) for All Trucks

5.0
Based on 23 reviews
5 star
100
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
1-5 of 23 reviews
  1. AF

    LS hinges have remarkable craftsmanship. They arrive to my house very quickly and their customer service was great. I called them and asked them which diameter square tube They mount on and was given an answer immediately of 1 inch. Can’t wait to install them on my project..

    (0) (0)
  2. TR
    (0) (0)
  3. JH
    (0) (0)
  4. RS

    OMG!!!!! These thiwork better than they look.
    After countless hours of trying every type of hinge known to man, tried these and Wow. Absolutely Perfect. Oh, and the customer service is absolutely outstanding, Kris you are a patient man.LOL!!!!! Thank you Brutha.

    (0) (0)
  5. BM

    Can’t express how happy I am doing business with LS Fab

    (0) (0)
