Hidden Windshield Wiper System – 1948-1952 Ford Truck

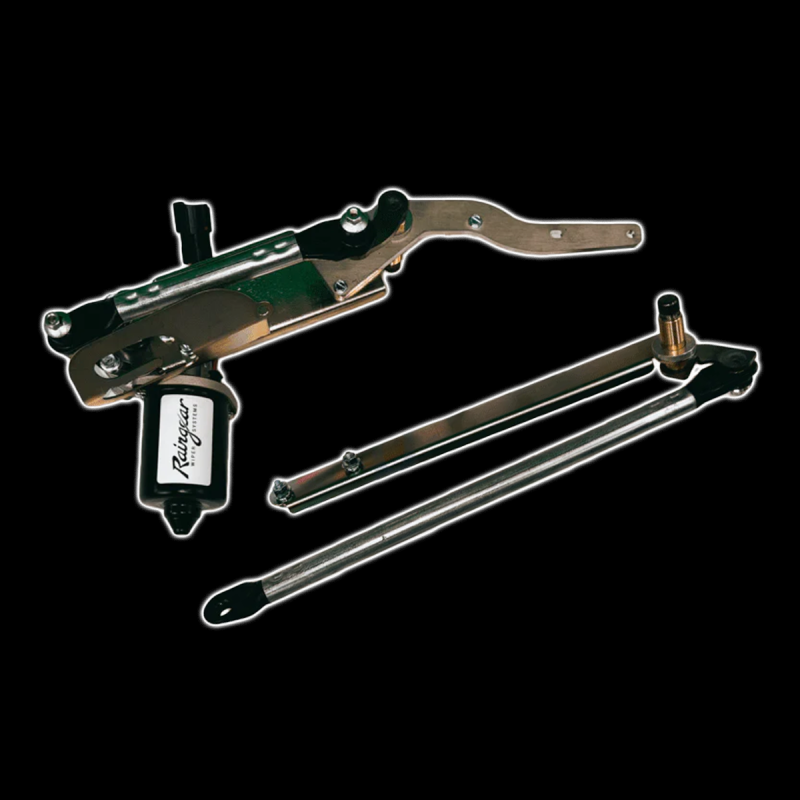

This hidden wiper system fits 1948-1952 Ford F-1 trucks. It tucks the wiper hardware out of sight for a clean, factory-style cowl.

A few fitment notes to keep in mind:

• Cross-mount master cylinders likely won't fit once this system is installed.
• The original radio won't clear the system.
• The intermittent/delay switch won't fit in the original location.
• You must use the original speedometer cable — aftermarket cables are too stiff to clear the drive unit shield.

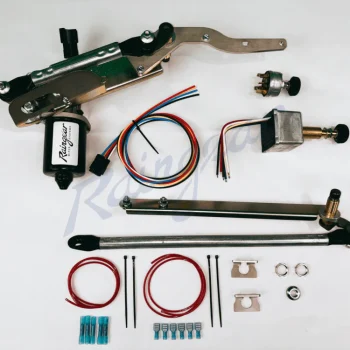

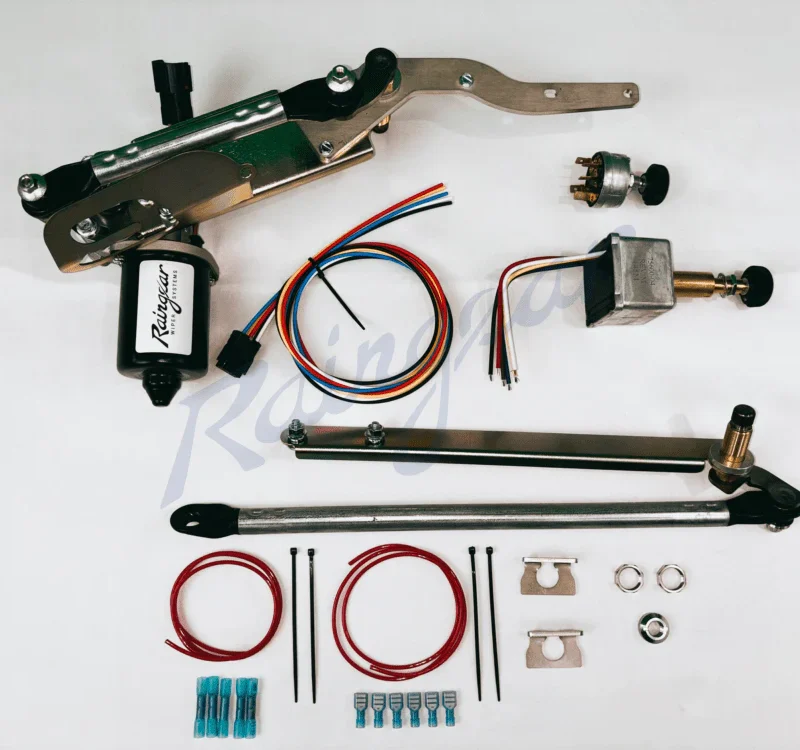

The kit includes everything except assembly lube, arms and blades, escutcheons, and model-specific switch knobs. Your stock pieces will still work. (Escutcheons are the trim bezels that cover the pivot posts in the cowl.)

This system can't be controlled by a GM column-mounted wiper switch. You'll need to use the included switch instead — GM switches ground the wiper motor, while this system switches the positive wire.

Need installation help? Find the standard install guide, the 2-speed diagram, and the 2-speed with delay wiring diagram below.
