Gas Filler Delete – 47-54 GMC Chevy Truck

Expect to modify the base slightly. The panel is built to cover a range of years, and no two beds underneath it are the same - a 67-72 floor, a 73-87 floor, a wood floor and a floor with a spray-in liner all sit at different heights. That is why the part ships in raw steel, pre-formed and only tacked together, so you can adjust it to your own bed before it goes in for good.

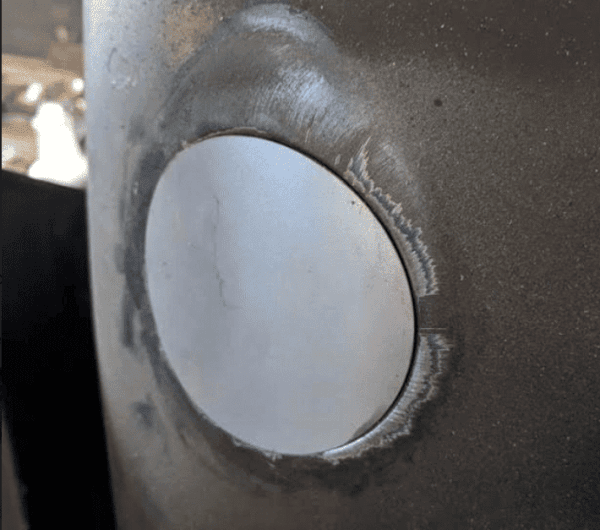

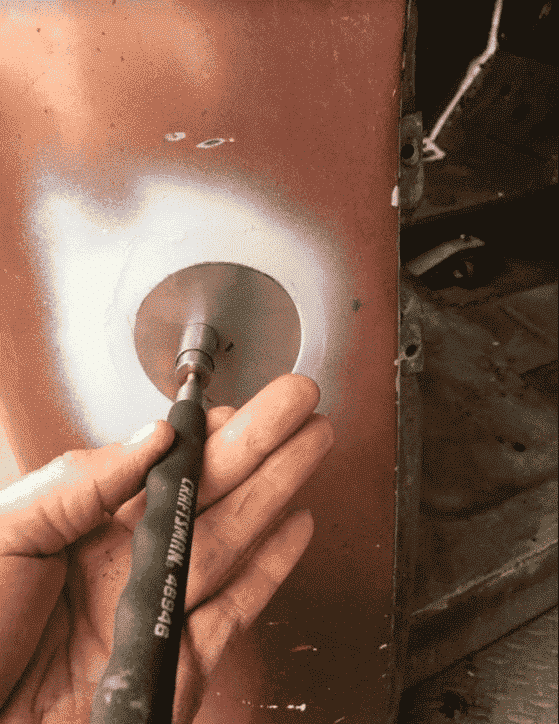

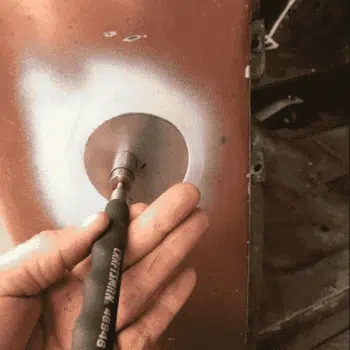

Either. Weld it in for a seamless finish, or screw it in using the supplied stainless hardware and the three tapered mounting holes in the flange. Customers have also riveted and bonded them in. The choice is yours.

Flange diameter 2-15/16", neck diameter 1-1/2", neck length 2-1/4". A universal fill tube joins the neck to the tank, and a side fill tank in 1.5" is the simplest thing to run it into.

The flip-up cap closes onto the neck face and the retaining chain keeps the cap with the truck, but this is a fuel filler, not a watertight hatch. Anything mounted in a bed floor will see water sitting on it, so seal the panel to the floor when you fit it and treat the cap as a fuel cap rather than a gasketed lid.

This part is listed for 1947–1954 Chevy and GMC 3100, 3600, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.

It is a stock item and leaves our warehouse in 1-3 business days. Transit after that is typically 2-5 business days in the United States. Larger orders can arrive in more than one box on different days.
