Description

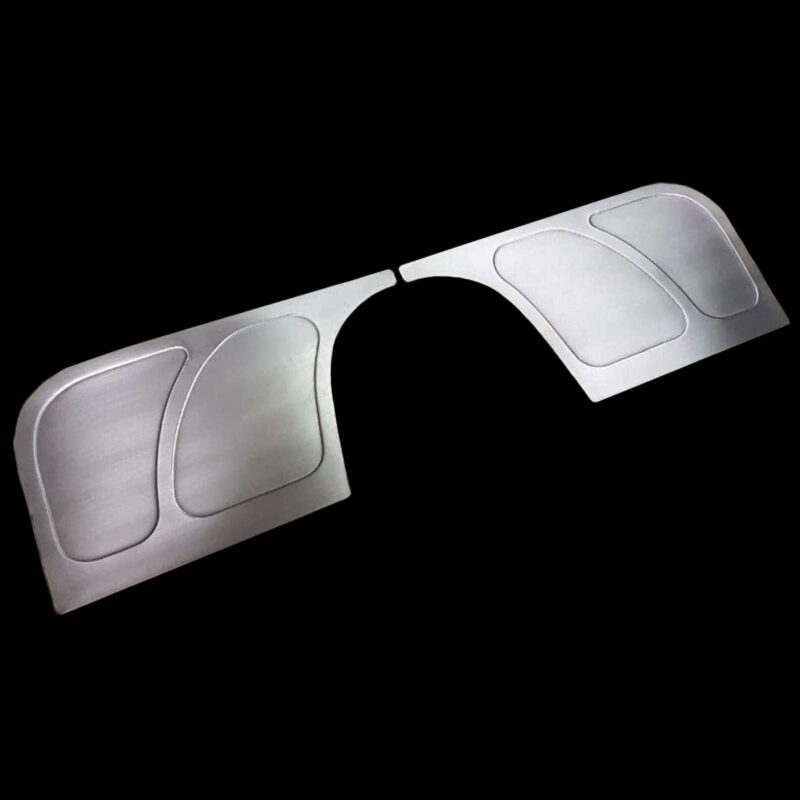

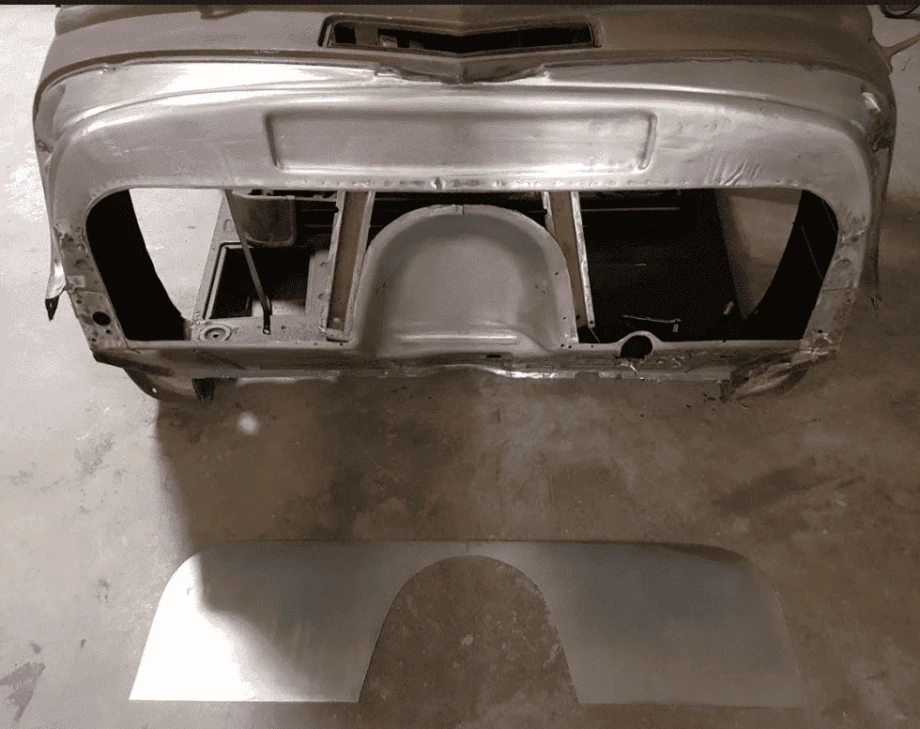

The firewall is the panel that separates the engine from the cab, and on a 1947–1954 Chevrolet or GMC truck the factory one rusts and picks up damage over time. This is the replacement, also known as a filler or body panel, laser cut and available smooth or bead rolled.
Features
- Laser cut from 18 gauge steel.
- Available bead rolled, or smooth with no bead rolling at all.
- Cut to fit the 1947–1954 Advance Design cab.
Choose your style
- Smooth / Shaved
- Tracy
- Kalinda
- Holly
- DeeDee
Not included
- Paint or coating - the panel ships in bare 18 gauge steel.
- The upper cowl filler and the toe boards. All three together are the bead rolled filler panel combo.
Truck compatibility and specs
Fits these trucks
1947–1954
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order. Not sure what year your truck is? Decode its VIN. Parts from another year on it? Check what swaps.
Specifications
- Part number
- 4754FW
- Brand
- LS Fabrication
- Material
- Aluminum Sheet Metal
- Interior / Exterior
- Exterior
- Weight
- 3 kg
Fits alongside
Most often bought with this part:
Installation
Installation GuideHow to Install a LS Fabrication Bead Rolled FirewallInstallation Guide1947-54 Chevy Firewall Filler Panel InstructionsReviews
Customer reviews
What owners are saying
25
Bead Rolled Firewall - 47-54 GMC Chevy Truck
Common questions
Does the panel arrive finished, or does it need work?
It ships bare, ready for you to fit and then prep and paint, coat or cover however suits the build.
Can I bolt it in instead of welding?
It depends on the panel. Several go in more than one way - laid over the existing panel, butt welded, screwed, riveted or bonded - and the Features list and installation notes on this page say what this one is set up for.
How much fitting should I expect?
Test fit before anything is welded or drilled. Fifty years of body work, previous repairs and factory tolerance mean no two cabs or beds are identical, so expect some final fitting to your own truck.
How do I know it fits my truck?
This part is listed for 1947–1954 Chevy and GMC 3100, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
How long before it ships?
It is a stock item and generally ships within 1-3 business days. Carrier transit time is on top of that, and larger orders can arrive in more than one box on different days.
What if it is not right for the truck?
You have 30 days from delivery to request a return. The part needs to come back new, uninstalled and in its original packaging - once a part has been trimmed or welded it cannot go back. Return shipping is at your cost, and we ask that returns come by USPS. Made-to-order, sale and clearance items are final sale. The full terms are on our returns page.
Still not sure? Contact us before you order.
Excellent piece! Great price!

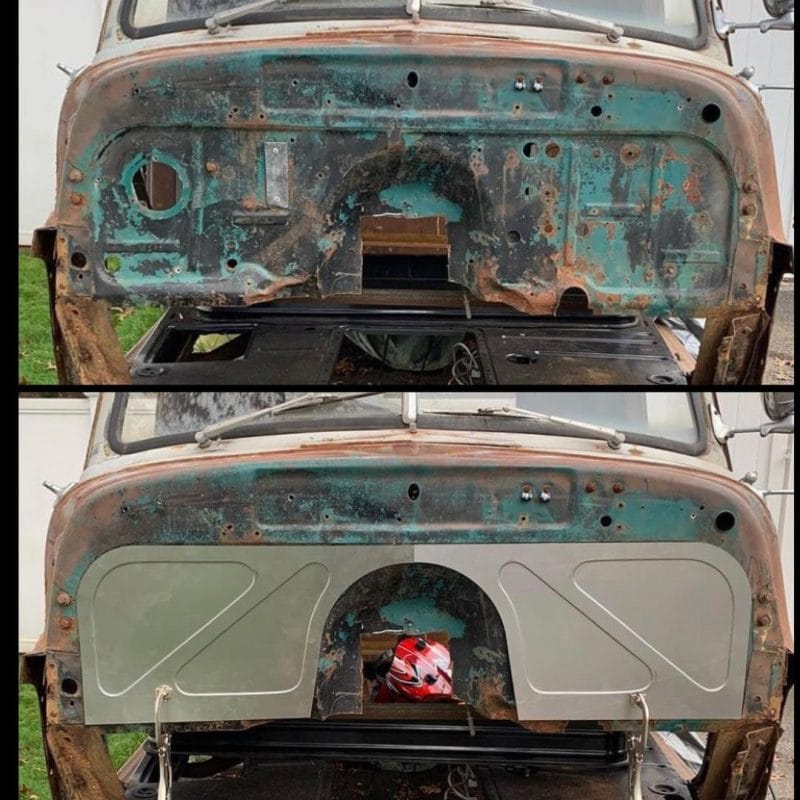

I was searching for a friend as his firewall had so many holes it was sad this firewall covers all previous builder mistakes.
Exactly what I needed, shipping was faster than expected.
