Description
A matched billet pair for the dash of a 1947–1953 Chevrolet or GMC Advance Design truck: a billet glove box door and a speaker grille cover with a double din opening, so a modern head unit sits in the middle of the dash. Both pieces are CNC milled from 6061 aluminum and come with a machined finish.
Features
- CNC milled from 6061 aluminum with a machined finish.
- Speaker grille cover carries the double din opening and has the ash tray deleted.
- All required mounting hardware is included.
In the box
- Billet glove box door.

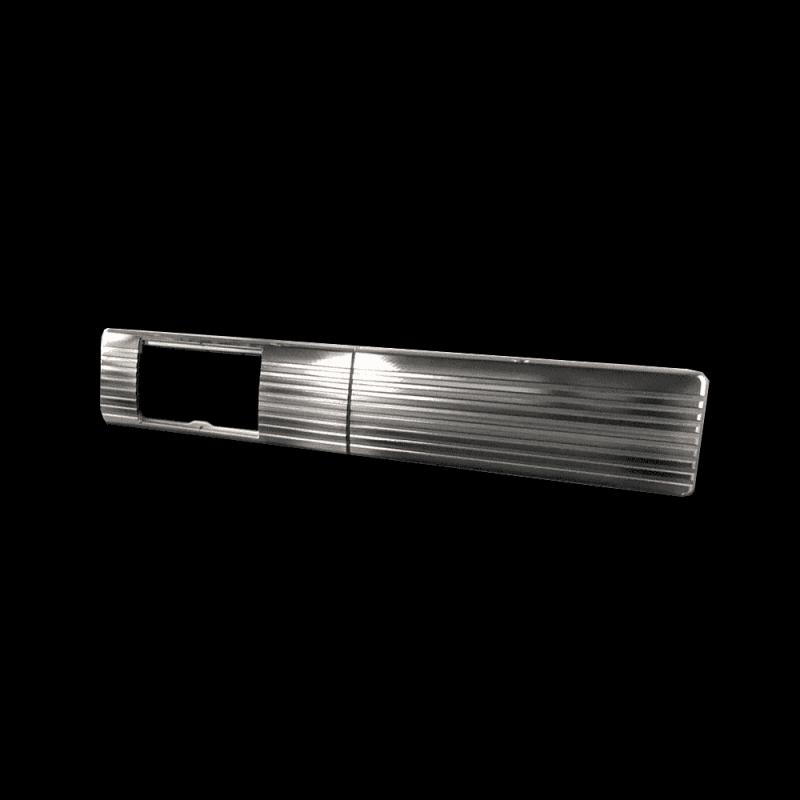

- Billet speaker grille cover with double din opening.
- Pioneer ADT-VA133 double din receiver installation kit.
- Stainless steel LS Fab glove box latch.
- (4) 10-32 3/8" stainless Phillips screws for mounting the glove box to the factory hinges.
- (2) 10-32 1/4" stainless Phillips screws for mounting the latch to the glove box.
- (4) 8-32 5/8" stainless Allen head studs for mounting the speaker grille cover to the dash.
- (4) 8-32 stainless serrated flange nuts for the grille cover studs.
- (1) Allen key for installing the speaker grille studs.
Fitment notes
The glove box door mounts to your factory hinges. Those hinges are not provided with this kit.
Not included
- The factory glove box hinges, which are reused. The Pioneer ADT-VA133 double din installation kit is included.
- The head unit itself, and speakers.
Truck compatibility and specs
Fits these trucks
1947–1953
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order.
Specifications
- Part number
- 4753DDBD
- Material
- Billet Aluminum
- Brand
- LS Fabrication
- Interior / Exterior
- Interior
- Weight
- 2.2 kg
Fits alongside
Most often bought with this part:
Installation
The glove box door mounts to the factory hinges, which are not part of the kit. The latch fastens to the glove box with the two short stainless screws.
The speaker grille cover mounts to the dash on the supplied Allen head studs and serrated flange nuts, and an Allen key is in the box for setting those studs.
Reviews
Customer reviews
What owners are saying
6
Double Din Dash - 47-53 GMC Chevy Truck
Common questions
Will my radio fit the opening?
The slotted holes take factory post radios and the popular classic-style Bluetooth radios, including the ones we sell. A radio with a non-standard shaft spacing may still need the openings finished by hand - the panel is 18 gauge steel, so opening a hole is straightforward.
Is it pre-bent to the dash?
Yes, it is laser cut and pre-bent to the dash contour. It is meant to be a do-it-yourself repair for a dash that has already been cut for a single DIN player.
How do I know it fits my truck?
This part is listed for 1947–1953 Chevy and GMC 3100, 3600, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
What if it is not right for the truck?
You have 30 days from delivery to return it by mail. Return shipping is on you, and the part needs to come back uninstalled and unmodified - once a panel has been trimmed or welded it cannot go back. Made-to-order items are final sale. The full terms are on our returns page.
Still not sure? Contact us before you order.
Top notch quality and amazing customer interaction. Will for sure purchase again from LS Fab again.
Very nice piece,well worth the price.
love it quality workmanship
The dash kit looks great in my truck. There was only a small problem with mounting hardware that LS Fab took care of quickly and without any headache. I’ll keep buy from LS Fab in the future. Great service. High quality work and materials.
I ordered the double din dash for my 50 GMC and I absolutely love it. Great looking product and finishes my interior off perfectly! I added a Sony double din and a backup camera and couldn’t be happier. The customer service is impeccable.
