Description

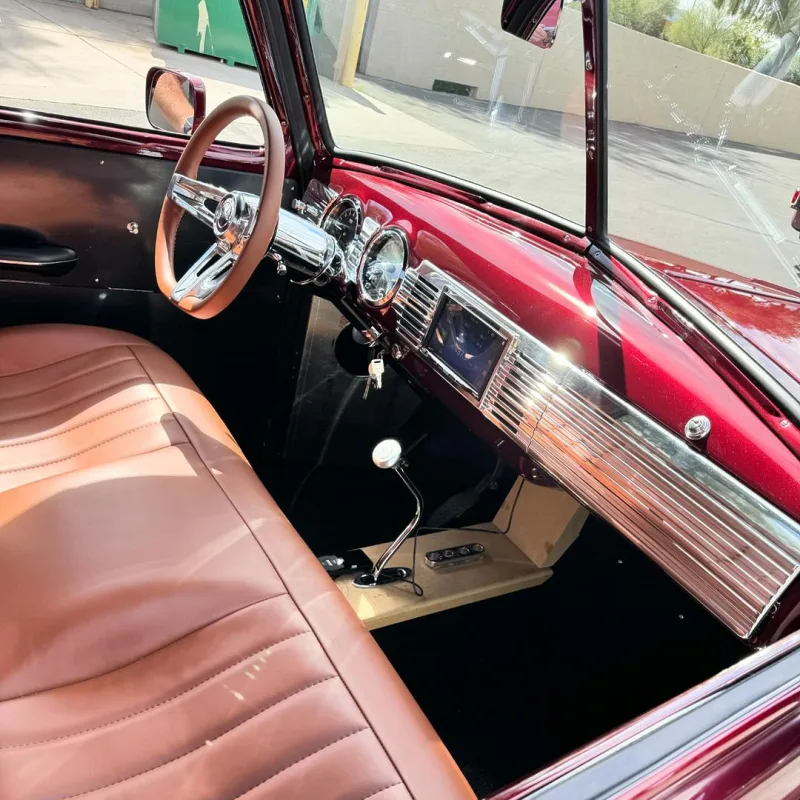

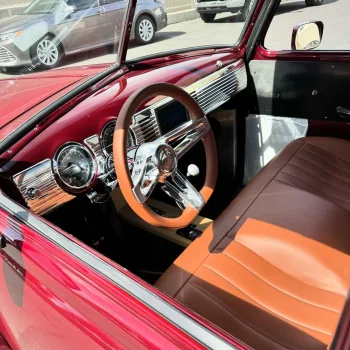

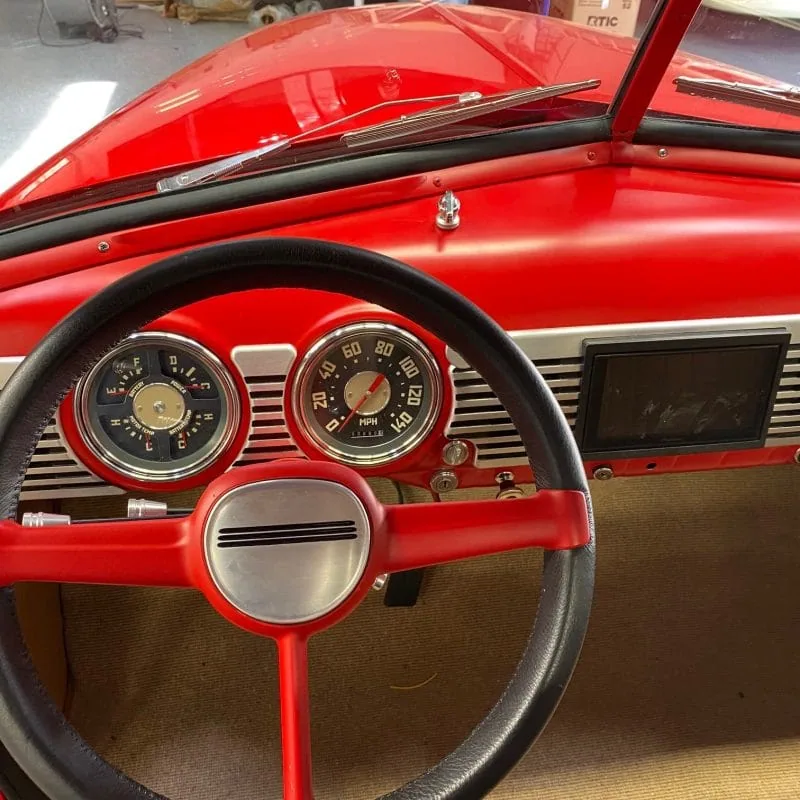

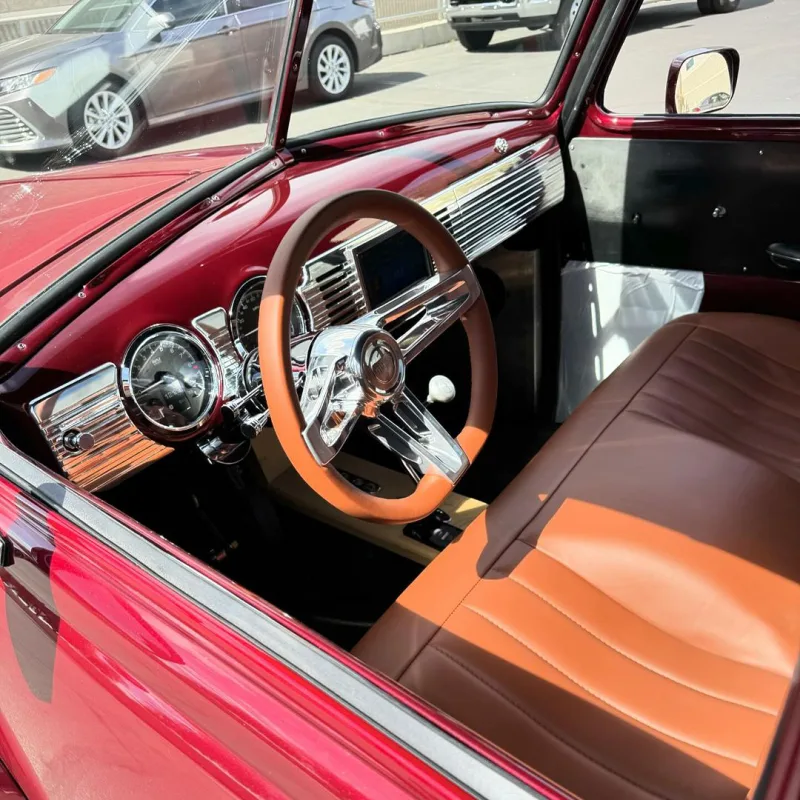

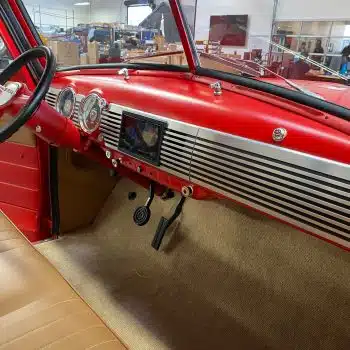

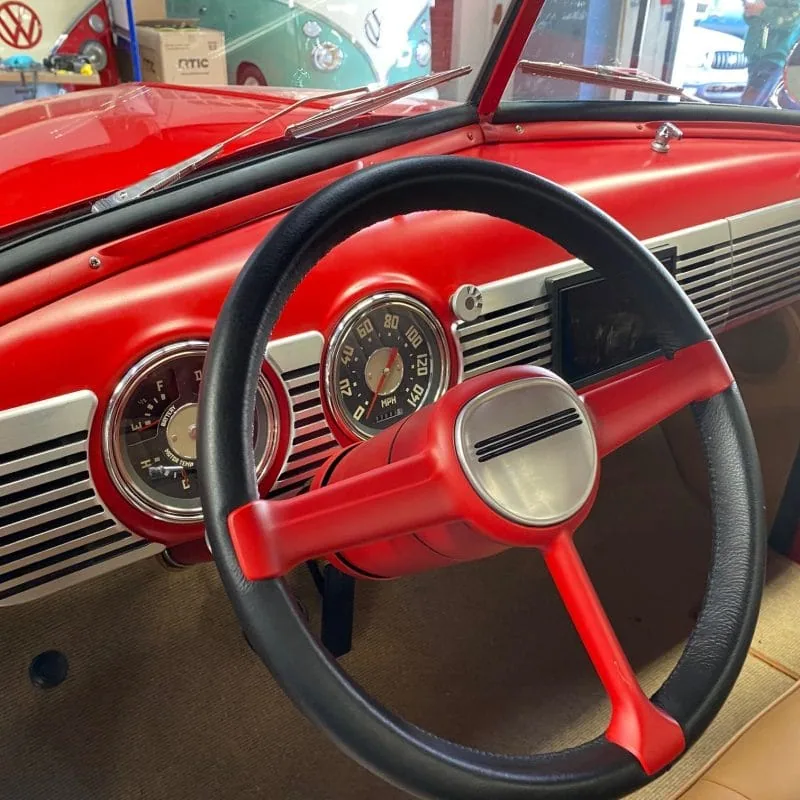

The Phantom billet dash for 1947–1953 GMC and Chevrolet Advance Design trucks, built around a double DIN opening. Pieces are CNC milled from 6061 aluminum with a machined finish, and the extended speaker grille cover has the ash tray deleted.
What is included
- Billet glove box door
- Billet extended double DIN speaker grille cover
- Billet gauge split piece
- Billet driver side dash piece
- Pioneer ADT-VA133 double DIN receiver installation kit
- Stainless steel LS Fab glove box latch
- 4 x 10-32 3/8" stainless Phillips screws for mounting the billet glove box to the factory hinges (hinges not provided)
- 2 x 10-32 1/4" stainless Phillips screws for mounting the latch to the billet glove box
- 8 x 8-32 5/8" stainless Allen head studs for mounting the billet pieces to the dash
- 8 x 8-32 stainless serrated flange nuts for the speaker grille cover studs
- 1 x Allen key for installing the speaker grille studs
Fitment notes
Four holes have to be drilled into the dash, two behind each of the new pieces on the driver side of the speaker grille. The gauge split piece covers the original offset column indent in the dash, so a drop column has to be used.
Truck compatibility and specs
Fits these trucks
1947–1953
Not sure this is the right part for your truck? Send us your year, make and model and we will confirm the fit before you order. Not sure what year your truck is? Decode its VIN. Parts from another year on it? Check what swaps.
Specifications
- Part number
- 4753PBDDD-DASH
- Material
- Billet Aluminum
- Brand
- LS Fabrication
- Interior / Exterior
- Interior
- Weight
- 3.2 kg
Fits alongside
Popular in Billet Aluminum Parts:
Installation
All required mounting hardware is included. Instructions and templates to help with the install are under the installation tab.
Four holes need to be drilled into the dash, two behind each of the new pieces on the driver side of the speaker grille. The gauge split piece covers the original offset column indent, so plan on a drop column.
Reviews
Customer reviews
What owners are saying
1
Phantom Double Din Billet Dash - 47-53 GMC / Chevy Truck
Common questions
Are the glove box hinges included?
No. The billet glove box door mounts to your factory hinges with the supplied stainless screws.
Is it a straight bolt-in?
No. Four holes have to be drilled in the dash, two behind each of the new pieces on the driver side of the speaker grille, and the gauge split piece covers the original offset column indent, so the truck needs a drop column.
Is a double DIN install kit included?
Yes, the Pioneer ADT-VA133 double DIN receiver installation kit is in the box. The head unit is not.
What finish do the pieces come in?
CNC milled from 6061 aluminum in a machined finish.
How do I know it fits my truck?
This part is listed for 1947–1953 Chevy and GMC 3100, 3800 and Suburban. The full year, make and model list is in the Truck Compatibility tab on this page. If your truck has been modified, or you are between two of the year ranges we list, send us the year, make and model and we will confirm the fit before you order rather than after.
How long before it ships?
It is a stock item and generally ships within 1-3 business days. Carrier transit time is on top of that, and larger orders can arrive in more than one box on different days.
Still not sure? Contact us before you order.
Received my Phantom Double DIN Billet Dash and it exceeded my expectations. I asked the LS Fabrication team for some custom touches and they delivered exactly to my specifications. After experiencing the product, hands-on, I expect to order additional items to enhance the overall finish of my 1952 Chevy 3100.
Glad you are happy with your dash Pat! We appreciate your support and look forward to getting more of our products in your build!
