Serpentine System (Wraptor) – Small Block – GMC Chevy Trucks

Description

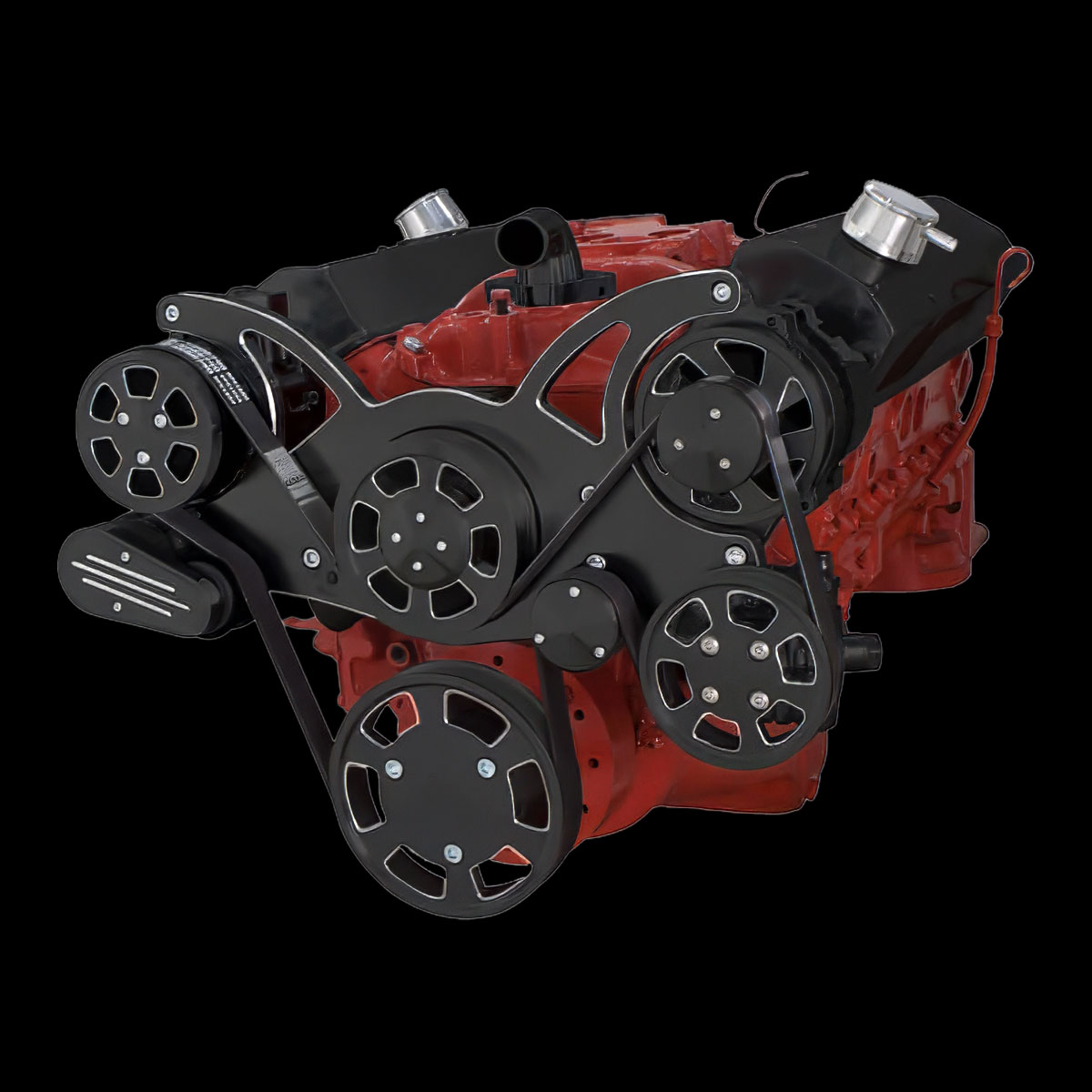

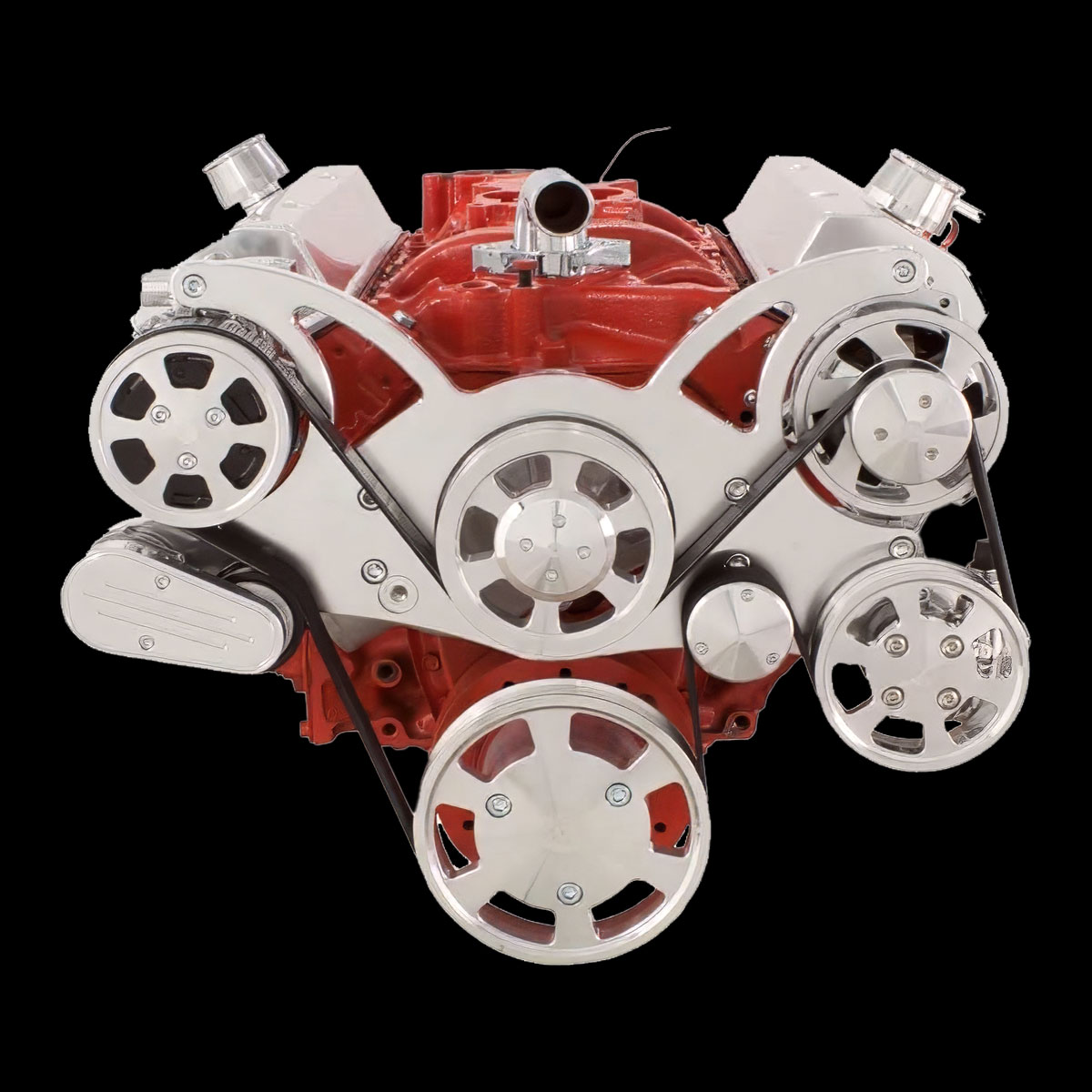

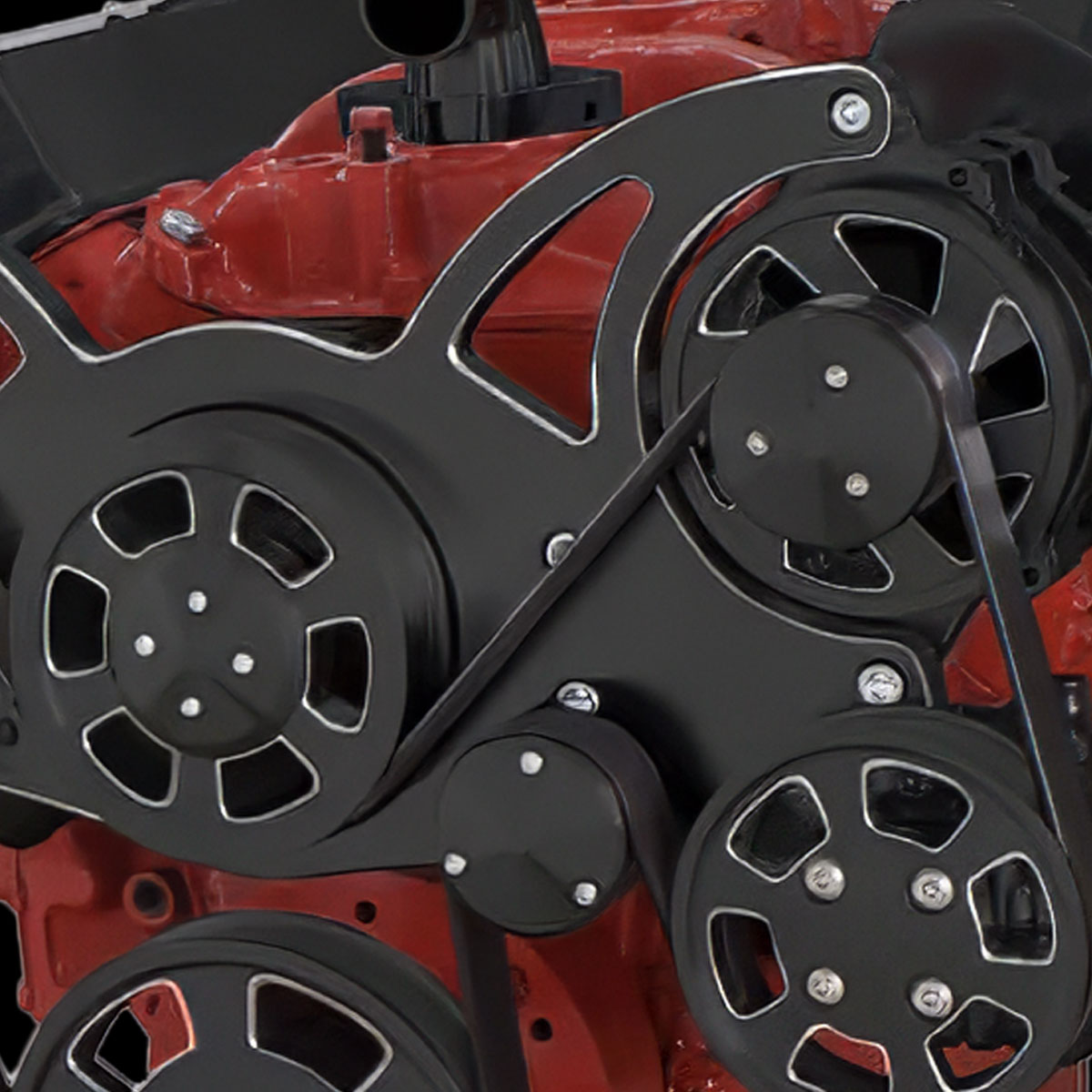

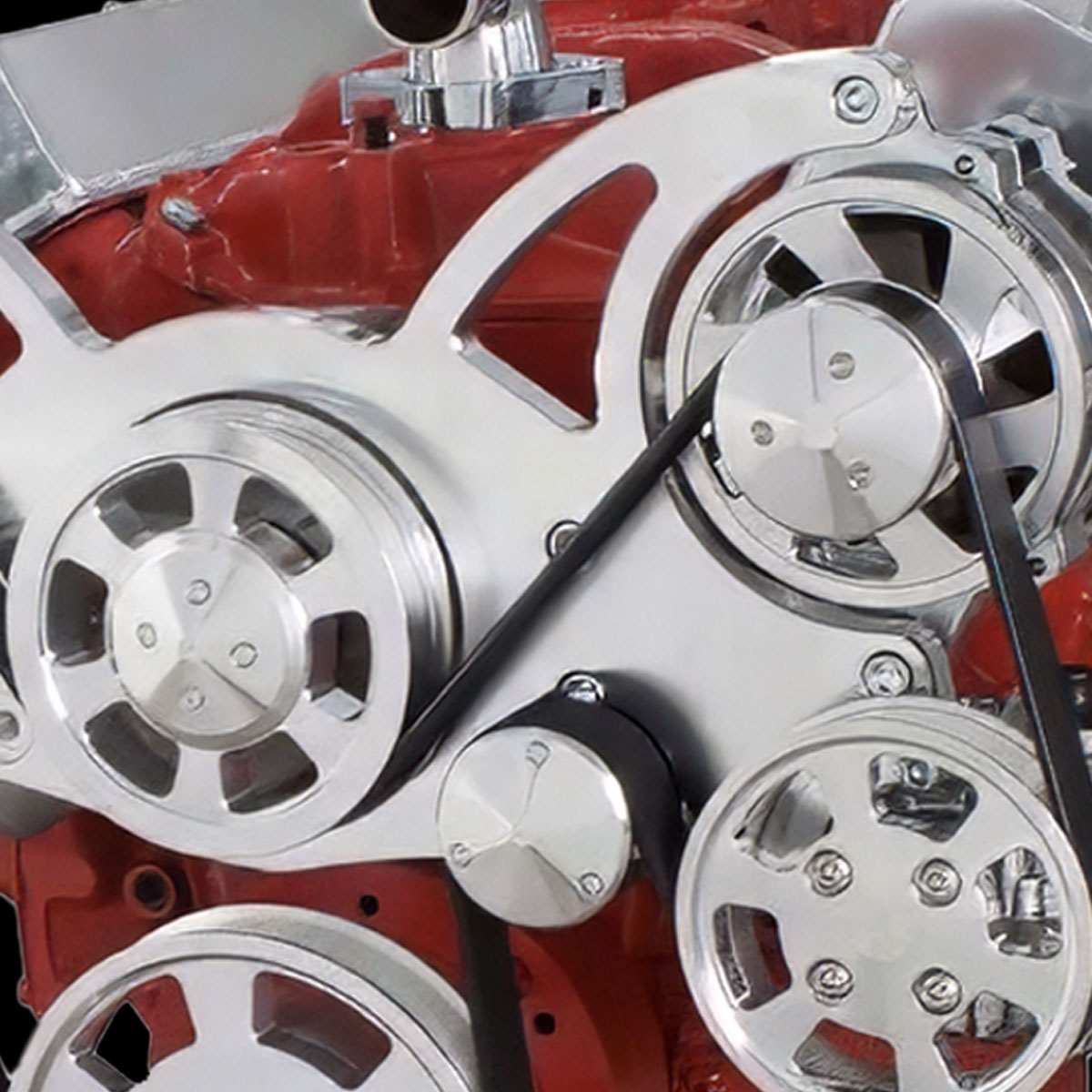

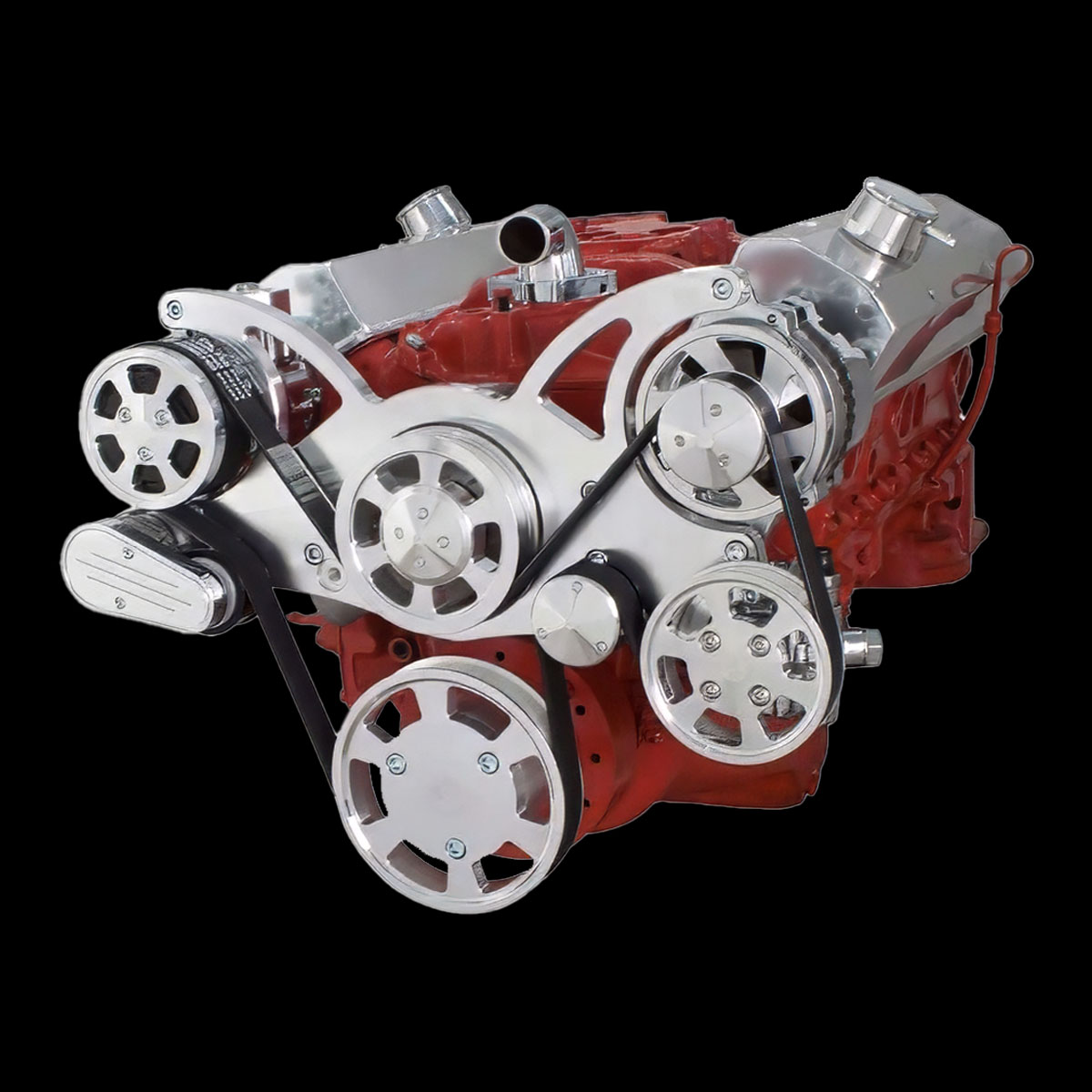

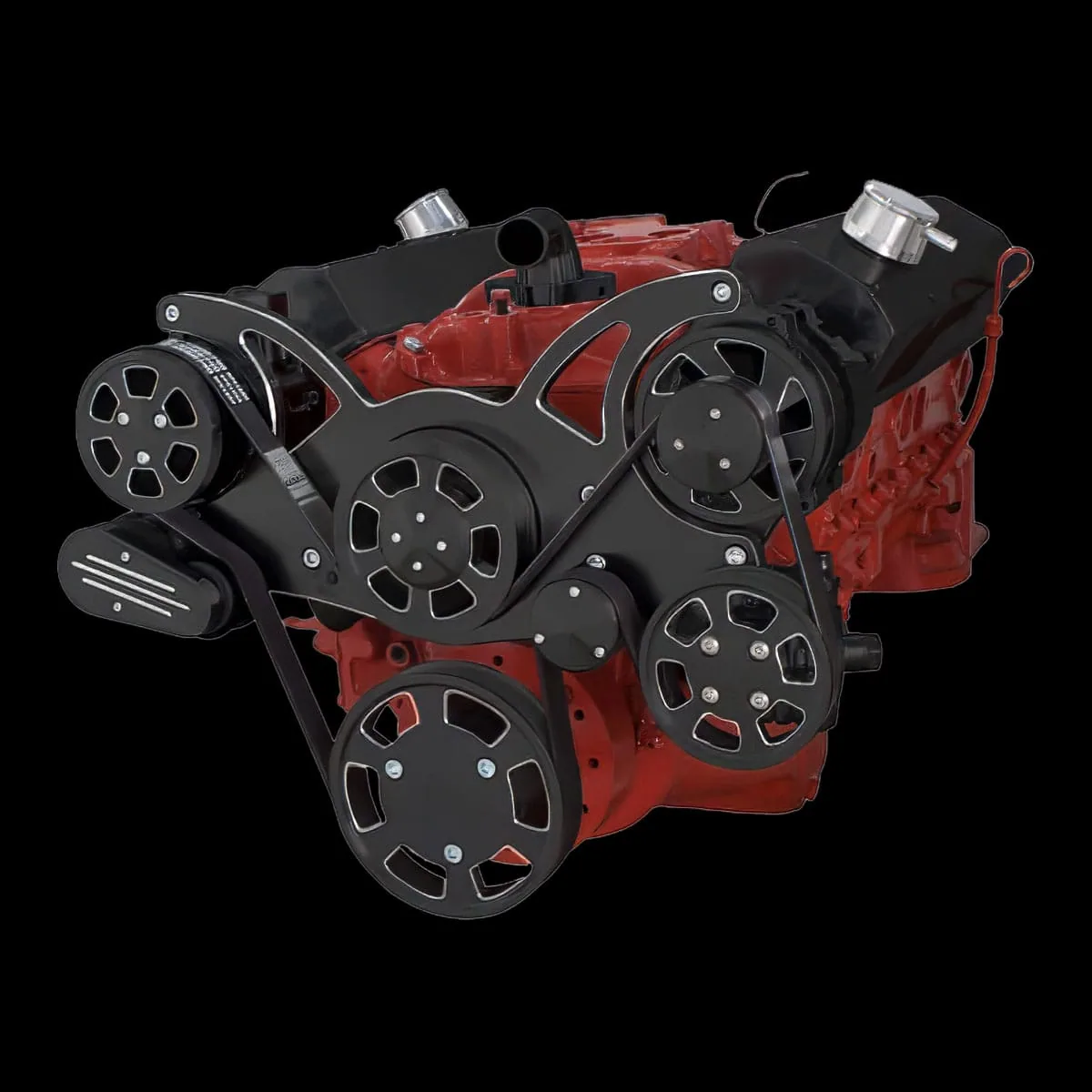

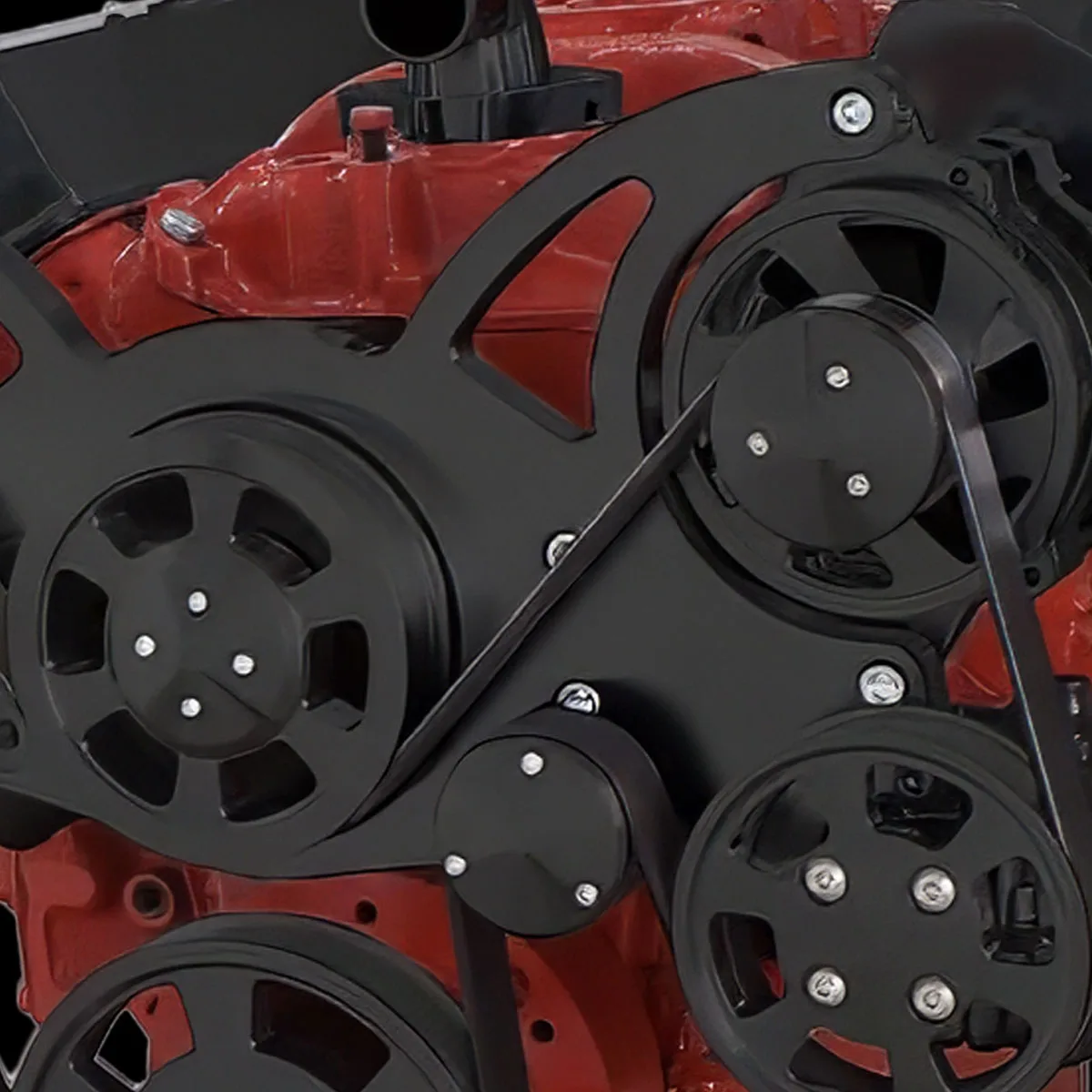

An all-inclusive WRAPTOR 8 track serpentine system for Small Block Chevy 283, 350 and 400 engines. It converts the front of the engine over to serpentine and comes with a 140 amp alternator, a GM Type II power steering pump and a peanut style AC compressor. The alternator sits on the driver's side, above the power steering pump.

Features

• CVF Racing 8 rib serpentine pulleys increase grip, reduce stretching and prevent slipping compared to a 6 rib design.
• Spring loaded Gates tensioner holds tension through hard acceleration and deceleration and compensates for belt stretch.
• 140 amp alternator, GM Type II power steering pump and peanut style AC compressor.
• One piece billet aluminum bracket.

What the kit includes

• High flow aluminum water pump*
• 140 amp chrome 1-wire CS130 alternator*
• Chrome plated AC compressor
• AC compressor clutch cover
• Chrome plated aluminum GM Type II power steering pump
• Remote mount reservoir with bracket
• 8 rib belt*
• Water pump pulley and cover*
• Crank pulley*
• Crank pulley spacer*
• Alternator pulley and cover*
• Power steering pulley
• One piece billet aluminum bracket*
• Universal alternator fan*
• All mounting hardware*

* Included with all configurations.

Application notes

• Works with a mechanical or an electric fuel pump.
• Works with a mechanical or an electric fan.
• Works with standard or camel hump / fuelie heads.
• Reverse rotation water pump.
• Compatible with hydro-boost.
• Power steering lines from the pump to the reservoir are not included.

Ordering without accessories

If you order the system without accessories, the parts you already have need to meet these requirements:

• Alternator — GM CS130 style with 6-12 o'clock mounting and 6.6" bolt spacing.
• Power steering pump — GM Type II.
• Compressor — peanut style (7B10) with an 8 rib clutch.
• Water pump — 5.62" tall, reverse rotation, 5/8" pilot, lower radiator hose on the passenger side.
