Serpentine System (Wraptor) – Big Block – GMC Chevy Trucks

Description

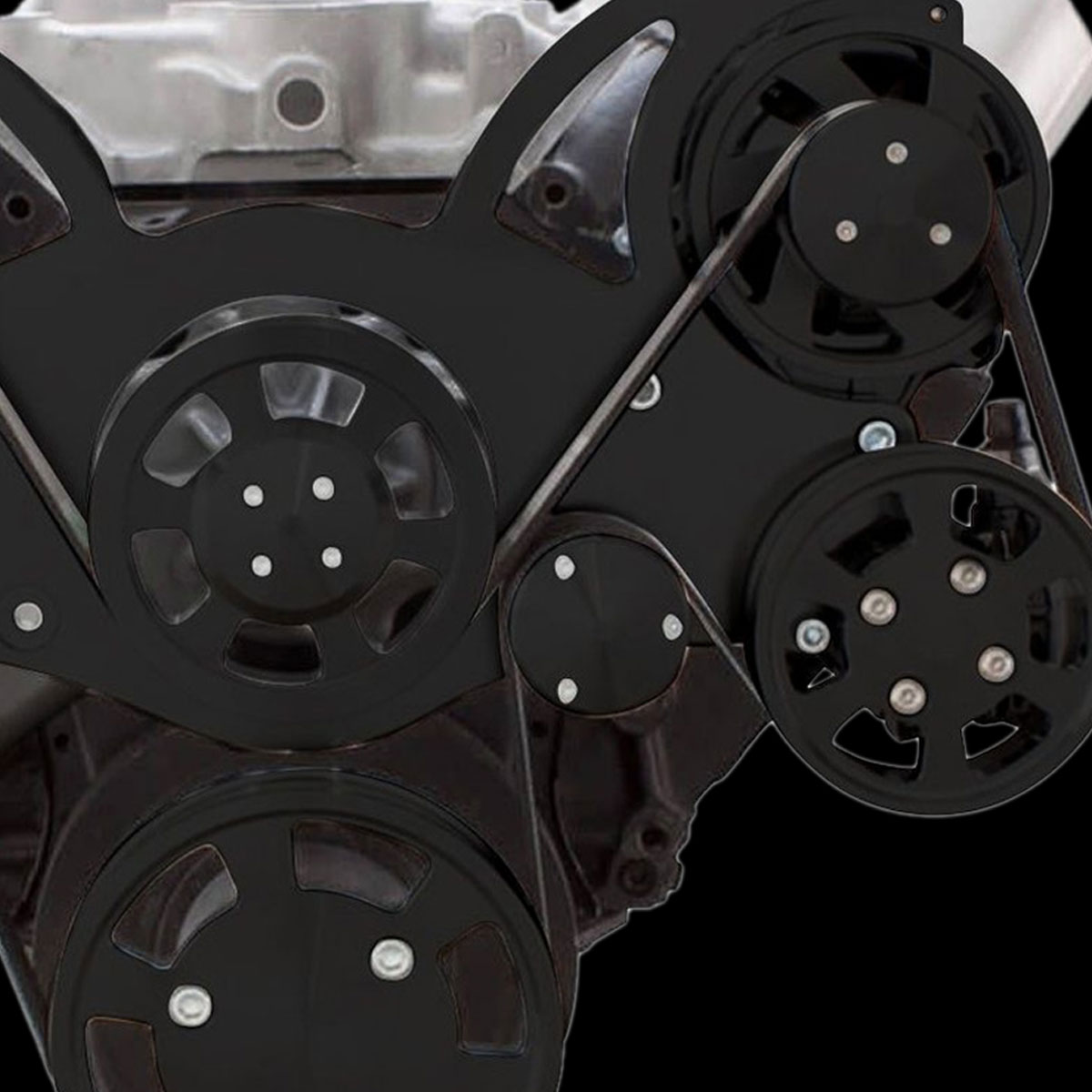

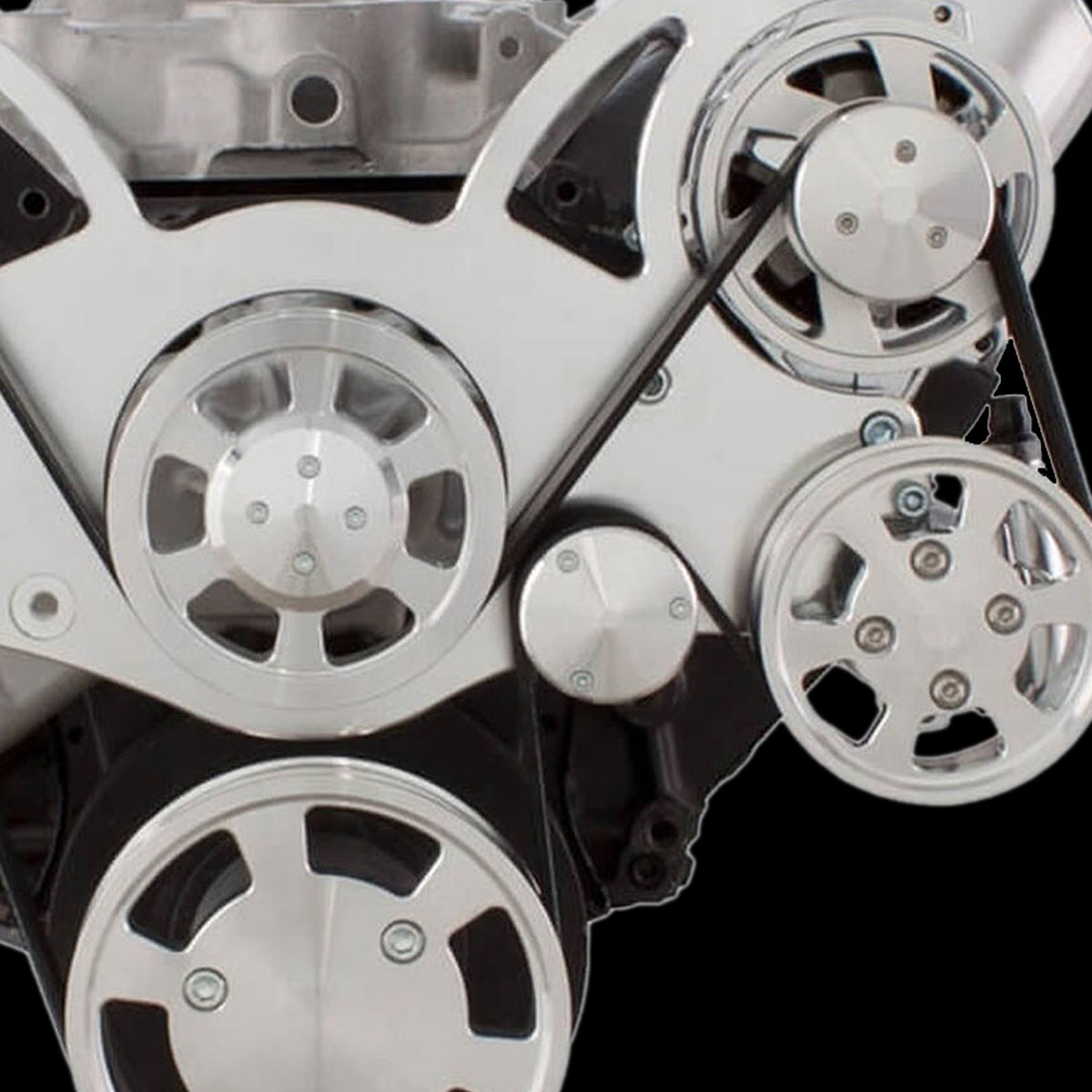

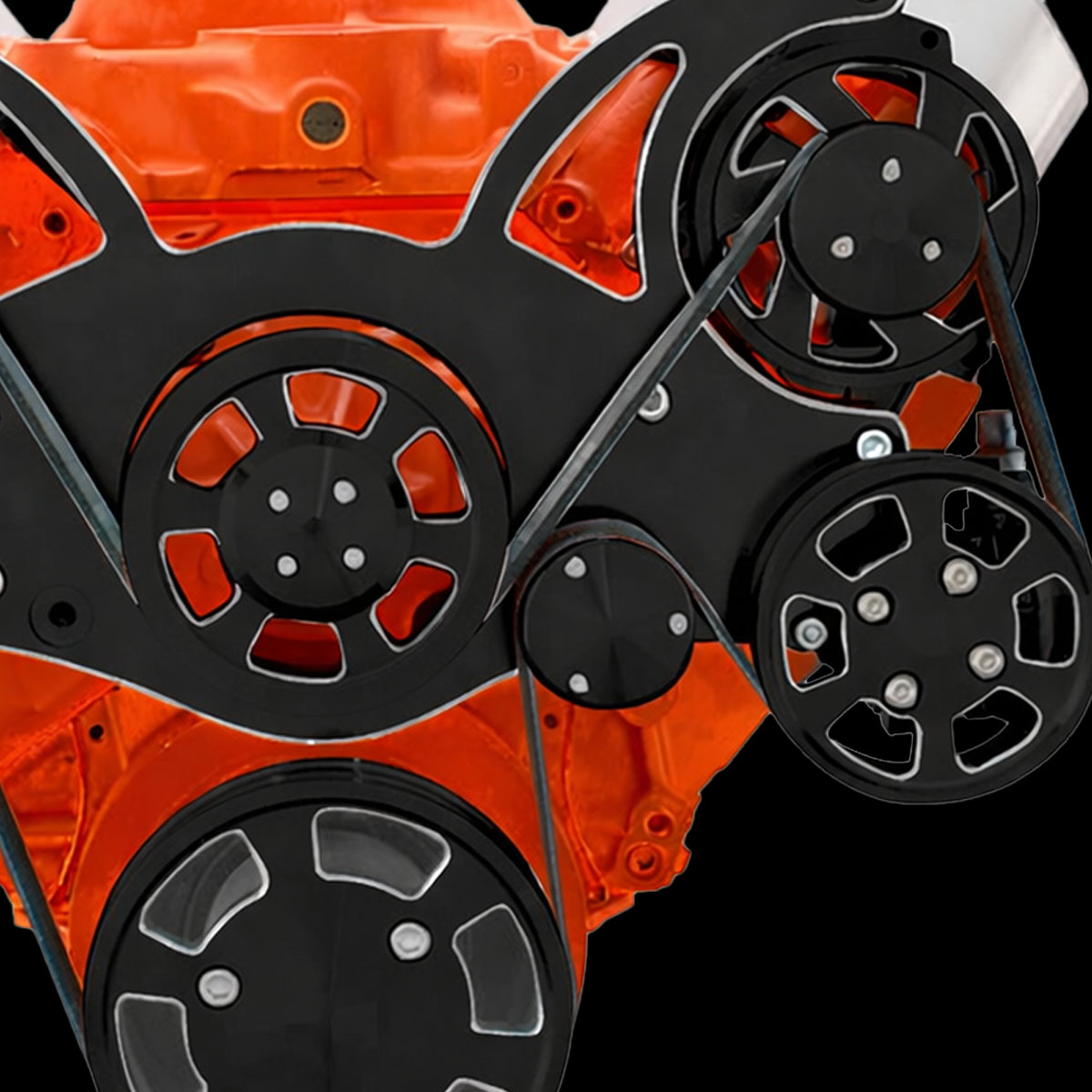

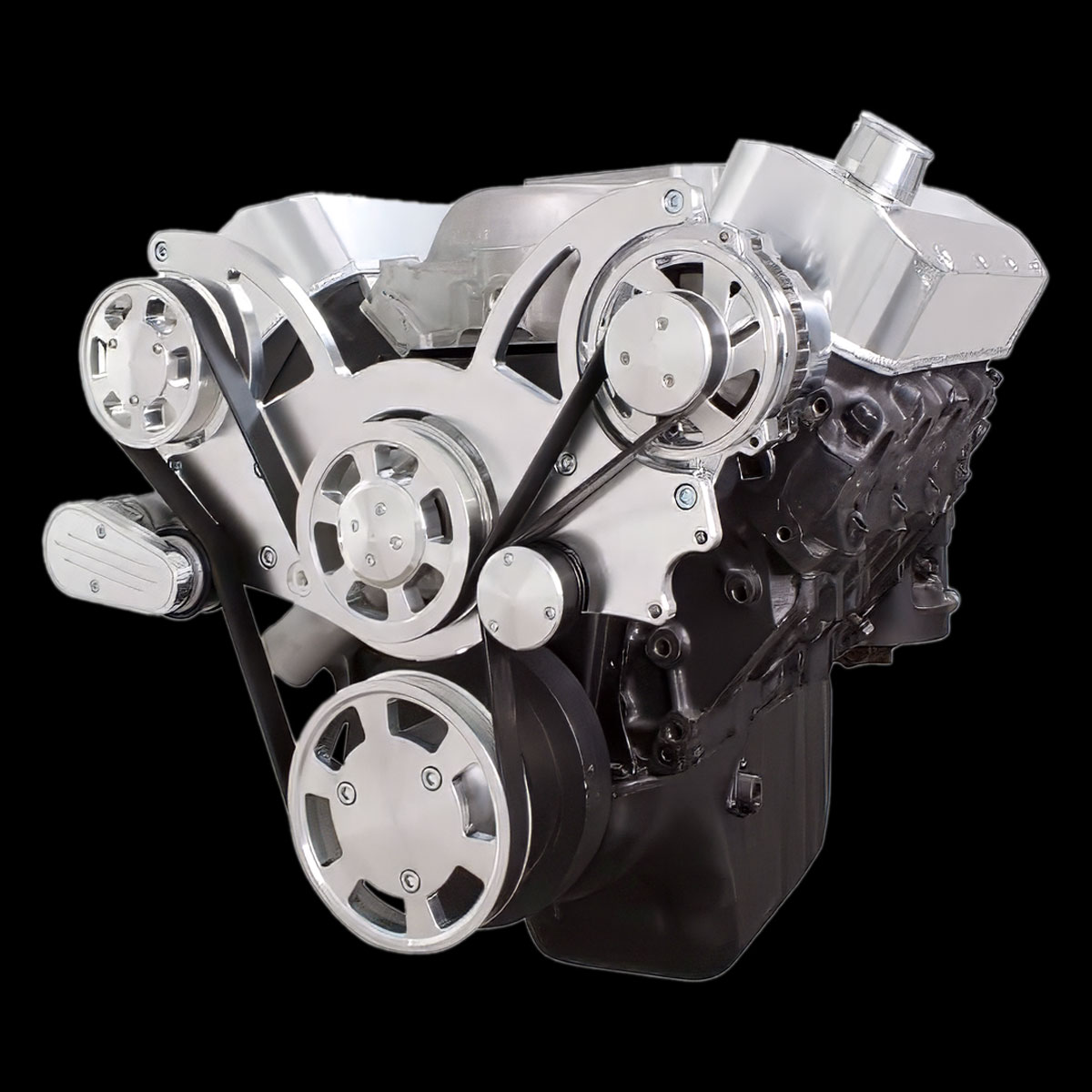

The WRAPTOR is an eight-rib serpentine conversion for big block Chevrolet 396, 427 and 454 engines. It runs the alternator, power steering and air conditioning off one bracket, with the alternator up on the driver's side above the power steering pump.

Features

• 8 rib pulleys grip harder, stretch less and slip less than a traditional 6 rib design.
• Spring loaded Gates tensioner holds tension through hard acceleration and deceleration and takes up belt stretch.
• One piece bracket with all mounting hardware.

What the kit includes

• High flow aluminum water pump with 8 rib pulley and cover.
• 140 amp chrome 1-wire CS130 alternator with pulley, cover and universal alternator fan.
• Chrome plated aluminum GM Type II power steering pump with pulley and remote mount reservoir with bracket.
• Chrome AC compressor with clutch cover.
• Premium 8 rib belt, crank pulley and crank pulley spacer.
• Spring loaded belt tensioner.

Fitment notes

Fits big block 396, 402, 427, 454, 502, 572 and 632 engines, standard or tall deck, with either a mechanical or electric fuel pump and either a mechanical or electric fan. Compatible with hydro-boost. Power steering lines from the pump to the reservoir are not included.

Ordering without accessories? You will need a GM CS130 style alternator with 6–12 o'clock mounting and 6.6" bolt spacing, a GM Type II power steering pump, a peanut style (7B10) compressor with an 8 rib clutch, and a 5.7" tall reverse rotation water pump with a 5/8" pilot and the lower radiator hose on the passenger side.
